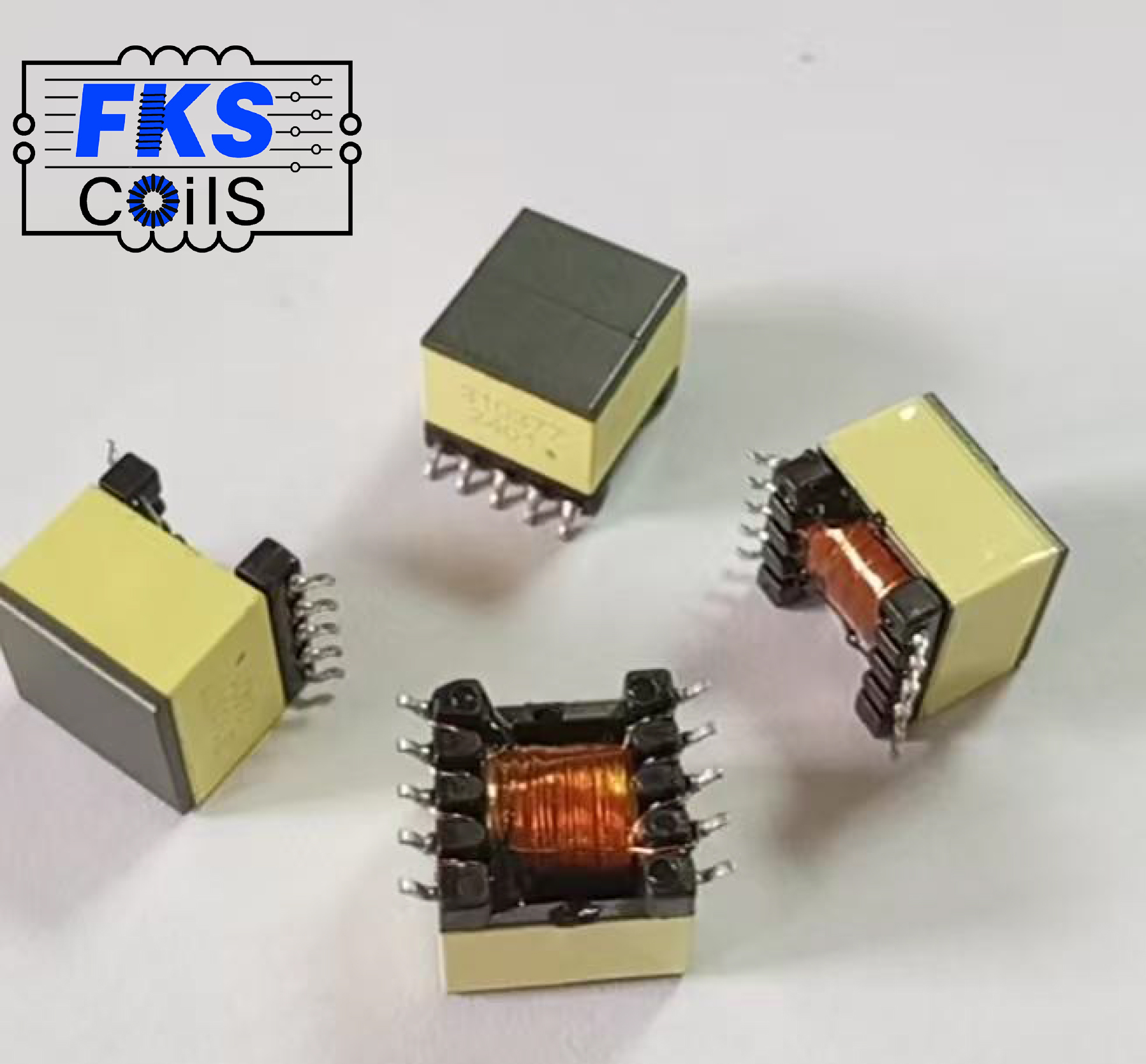

EP series Transformers
Product Description
PoE Power over Ethernet Transformer
Characteristics
· Small size
· Self-shielding package
· Low losses
· Pick and placeable
· Lead free and RoHS compliant
· Operating temperature: -40°C to 100°C
Applications
· Factory automation and process control
· Building automation
· Portable instrumentation
· Field transmitters and other sensors
Products
| NO. | Order Code | Size | Version | VIN | VOut1 | IOut1 | VOut2 | IOut2 | VOut3 | IOut3 | L | n | VT | Mount |
| (V) | (A) | (V) | (A) | (V) | (A) | (µH) | V (AC) | |||||||
| 1 | FKS750313109 | EP7 | Flyback | 36 - 57 V (DC) | 5 | 2.3 | – | – | – | – | 44 | 4:1:1:2.5 | 2400 | SMT |
| 2 | FKS750310019 | EP7 | Flyback | 36 - 57 V (DC) | 3.3 | 0.91 | – | – | – | – | 310 | 5.5:1:1:3.75 | 1500 | SMT |
| 3 | FKS750310018 | EP7 | Flyback | 33 - 57 V (DC) | 3.3 | 0.91 | – | – | – | – | 500 | 12:1:2.5 | 1500 | SMT |
| 4 | FKS750310020 | EP7 | Flyback | 33 - 57 V (DC) | 5 | 0.6 | – | 0.02 | – | – | 500 | 8:1:1.66 | 1500 | SMT |
| 5 | FKS750310022 | EP7 | Flyback | 33 - 57 V (DC) | 12 | 0.25 | – | – | – | – | 521 | 3.5:1:0.71 | 1500 | SMT |
| 6 | FKS750310062 | EP10 | Flyback | 36 - 57 V (DC) | 5 | 2 | – | – | – | – | 127 | 4:1 | 1500 | SMT |
| 7 | FKS750310027 | EP10 | Flyback | 9 - 50 V (DC) | 3.3 | 3 | – | – | – | – | 20.4 | 4.5:1:2.5 | 1500 | SMT |
| 8 | FKS750310031 | EP10 | Flyback | 33 - 57 V (DC) | 12 | 0.58 | – | – | – | – | 264 | 3.5:1:0.71 | 1500 | SMT |
| 9 | FKS750310032 | EP10 | Flyback | 33 - 57 V (DC) | 12 | 0.58 | – | – | – | – | 155 | 1.47:1:1 | 1500 | SMT |
| 10 | FKS750319924 | EP10 | Flyback | 40 - 57 V (DC) | 3.3 | 2.1 | – | – | – | – | 235 | 9.5:1:3.5 | 1500 | – |
| 11 | FKS750319935 | EP10 | Flyback | 40 - 57 V (DC) | 5 | 1.4 | – | – | – | – | 235 | 6.5:1:2.38 | 1500 | – |
| 12 | FKS750319936 | EP10 | Flyback | 40 - 57 V (DC) | 12 | 0.6 | – | – | – | – | 235 | 2.75:1:1 | 1500 | – |
| 13 | FKS749119933 | EP13 | Flyback | 36 - 57 V (DC) | 3.3 | 2 | 3.3 | 2 | – | – | 127 | 6:1:1:3 | 1500 | SMT |
| 14 | FKS7491199331 | EP13 | Flyback | 36 - 57 V (DC) | 3.3 | 2 | 3.3 | 2 | – | – | 127 | 12:1:1:2.5 | 1500 | SMT |
| 15 | FKS749119950 | EP13 | Flyback | 36 - 57 V (DC) | 5 | 1.3 | 5 | 1.3 | – | – | 127 | 4:1:1:2 | 1500 | SMT |
| 16 | FKS7491199501 | EP13 | Flyback | 36 - 57 V (DC) | 5 | 1.3 | 5 | 1.3 | – | – | 127 | 8:1:1:1.67 | 1500 | SMT |
| 17 | FKS7491199112 | EP13 | Flyback | 36 - 57 V (DC) | 12 | 0.55 | 12 | 0.55 | – | – | 127 | 2:1:1:1 | 1500 | SMT |
| 18 | FKS7491199212 | EP13 | Flyback | 36 - 57 V (DC) | 12 | 0.55 | 12 | 0.55 | – | – | 127 | 4.8:1.4:1.4:1 | 1500 | SMT |
| 19 | FKS750310013 | EP13 | Flyback | 36 - 57 V (DC) | 5 | 2.6 | – | – | – | – | 127 | 4:1 | 1500 | SMT |
| 20 | FKS7491199332 | EP13 | Flyback | 36 - 57 V (DC) | 3.3 | 2 | 5 | 1 | 5.5 | 0.05 | 35 | 9:1:1.5:2.5:4.5 | 1500 | SMT |
| 21 | FKS7491199312 | EP13 | Flyback | 36 - 57 V (DC) | 12 | 1.25 | – | – | – | – | 40 | 1:1 | 1500 | SMT |
| 22 | FKS750032173 | EP13 | Flyback | 33 - 57 V (DC) | 12 | 1.125 | – | – | – | – | 127 | 3.42:1:0.71 | 1500 | SMT |
| 23 | FKS750032395 | EP13 | Flyback | 13 - 59 V (DC) | 5 | 0.5 | 3.3 | 3.2 | – | – | 37 | 10.5:1:2:5.5 | 1500 | SMT |
| 24 | FKS750310007 | EP13 | Flyback | 35 - 57 V (DC) | 3.3 | 2.5 | 12 | 0.33 | – | – | 127 | 6:1:3.4:3.4 | 1500 | SMT |
| 25 | FKS750310035 | EP13 | Flyback | 33 - 57 V (DC) | 5 | 2.7 | – | – | – | – | 77.4 | 3.67:1:2.5 | 1500 | SMT |
| 26 | FKS750310310 | EP13 | Flyback | 13 - 59 V (DC) | 6.6 | 0.2 | 3.3 | 2.5 | – | – | 37 | 5.25:1:1:2.75 | 1500 | SMT |
| 27 | FKS750310377 | EP13 | Flyback | 36 - 57 V (DC) | 12 | 1.08 | – | – | – | – | 127 | 2:1:1:1 | 1500 | SMT |
| 28 | FKS750314433 | EP13 | Flyback | 36 - 57 V (DC) | 5 | 2 | 5 | – | – | – | 180 | 6:1:1:2.17 | 1500 | SMT |
| 29 | FKS750313082 | EP13 | Flyback | 40 - 57 V (DC) | 5 | 4.6 | – | – | – | – | 37 | 4.5:1:2.5 | 2400 | SMT |
| 30 | FKS750314782 | EP13 | Flyback | 40 - 57 V (DC) | 24 | 1 | – | – | – | – | 37 | 1:1:0.56 | 2400 | SMT |
