FKS PD SMT Power Inductor Parameter

Product Name:

FKS PD SMT Power Inductor Parameter

Product Description

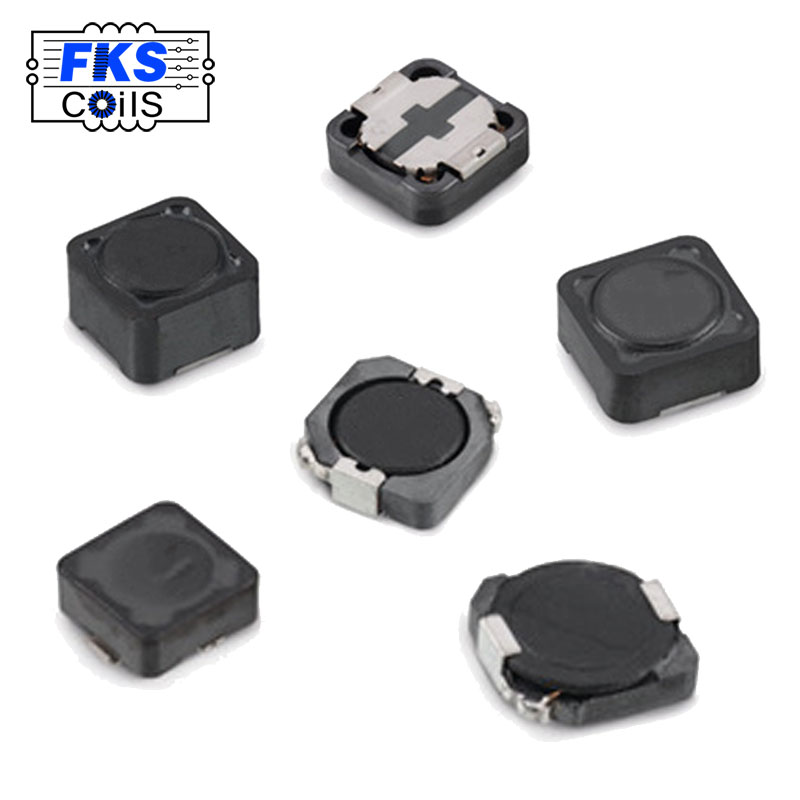

FKS CoilS - PD SMD Shielded Power Inductors are magnetically shielded for a low leakage field and low self-losses. We company have three Types: PD: Always offers low loss material, tight tolerances, and high saturation behavior; PD Robust: Plastic base improves the mechanical stability and efficiency; PD Performance: MnZn core improves saturation and RDC for highest efficiency

Characteristics

AEC-Q 200 qualified

Ultra low RDC and RAC

Highest possible saturation current based on ferrite

Suitable for switching frequency up to 10 MHz

Temperature dependent parameter available on REDEXPERT

Ambient Temperature: -40°C to +85°C (refering to I-R)

Operating Temperature: -40°C to +125°C

Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.

Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

Applications

Computers, laptops
Mobile phones, pagers
DC/DC converters
Graphic cards
Switch mode power supplies from 0.1 W up to 300 W
Integrated DC/DC converter
Ideal for switch mode power supplies with extreme high efficiency (>95%)

Order Code	L_(µH)	I_RP,40K(A)	I_SAT(A)	R_{DC max.(mΩ)}	f_res(MHz)	Size	Version	FKS Size	L(mm)	W(mm)	H(mm)	Mount
FKS7447785001	1	3.75	4.5	39	–	6033	Robust	6033 R	5.9	6.2	3.3	-
FKS7447785002	2.2	3.15	3.3	54	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785003	3.3	3.15	3	67	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785004	4.7	2.65	2.5	78	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785006	6.8	2.3	2	100	–	6033	Robust		5.9	6.2	3.3	-
FKS744778510	10	2	1.6	125	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785115	15	1.55	1.4	200	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785122	22	1.35	1.1	250	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785127	27	1.15	1	360	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785133	33	1.05	0.9	400	–	6033	Robust		5.9	6.2	3.3	-
FKS7447785147	47	0.88	0.74	600	–	6033	Robust		5.9	6.2	3.3	-
FKS744778520	100	0.63	0.5	1060	–	6033	Robust		5.9	6.2	3.3	-
FKS7447786001	1	4.1	5.5	34	–	6050	Robust	6050 R	5.9	6.2	5	-
FKS7447786002	2.2	3.4	4	49	–	6050	Robust		5.9	6.2	5	-
FKS7447786004	4.7	2.8	2.8	65	–	6050	Robust		5.9	6.2	5	-
FKS7447786006	6.8	2.7	2.3	75	–	6050	Robust		5.9	6.2	5	-
FKS7447786008	8.2	2.6	2.1	80	–	6050	Robust		5.9	6.2	5	-
FKS744778610	10	2.45	1.8	88	–	6050	Robust		5.9	6.2	5	-
FKS7447786122	22	2.1	1.3	115	–	6050	Robust		5.9	6.2	5	-
FKS7447786147	47	1.25	0.8	295	–	6050	Robust		5.9	6.2	5	-
FKS744778005	0.54	9.3	9	8.5	–	7332	Standard	7332	7.3	7.3	3.2	-
FKS744778001	1	8.3	6.4	12	–	7332	Standard		7.3	7.3	3.2	-
FKS744778002	2.2	6.6	4.8	20	–	7332	Standard		7.3	7.3	3.2	-
FKS744778003	3.3	4.9	4.1	32	–	7332	Standard		7.3	7.3	3.2	-
FKS744778004	4.7	3.65	4.2	60	–	7332	Standard		7.3	7.3	3.2	-
FKS74477810	10	2.85	2.2	72	–	7332	Standard		7.3	7.3	3.2	-
FKS744778112	12	2.65	2.15	98	–	7332	Standard		7.3	7.3	3.2	-
FKS744778115	15	2.25	1.75	130	–	7332	Standard		7.3	7.3	3.2	-
FKS744778118	18	2.1	1.7	140	–	7332	Standard		7.3	7.3	3.2	-
FKS744778122	22	2.05	1.4	190	–	7332	Standard		7.3	7.3	3.2	-
FKS744778127	27	1.95	1.3	240	–	7332	Standard		7.3	7.3	3.2	-
FKS744778133	33	1.85	1.15	240	–	7332	Standard		7.3	7.3	3.2	-
FKS744778139	39	1.5	1.1	320	–	7332	Standard		7.3	7.3	3.2	-
FKS744778147	47	1.25	1	360	–	7332	Standard		7.3	7.3	3.2	-
FKS744778156	56	1.2	0.88	470	–	7332	Standard		7.3	7.3	3.2	-
FKS744778168	68	1.05	0.84	520	–	7332	Standard		7.3	7.3	3.2	-
FKS744778182	82	1	0.78	690	–	7332	Standard		7.3	7.3	3.2	-
FKS74477820	100	0.91	0.76	790	–	7332	Standard		7.3	7.3	3.2	-
FKS744778212	120	0.87	0.68	890	–	7332	Standard		7.3	7.3	3.2	-
FKS744778215	150	0.82	0.53	1270	–	7332	Standard		7.3	7.3	3.2	-
FKS744778218	180	0.71	0.5	1450	–	7332	Standard		7.3	7.3	3.2	-
FKS744778222	220	0.62	0.42	1650	–	7332	Standard		7.3	7.3	3.2	-
FKS744778270	270	0.57	0.39	2310	–	7332	Standard		7.3	7.3	3.2	-
FKS744778233	330	0.45	–	2620	–	7332	Standard		7.3	7.3	3.2	-
FKS744778239	390	0.43	0.34	2940	–	7332	Standard		7.3	7.3	3.2	-
FKS74477824	470	0.42	0.31	4180	–	7332	Standard		7.3	7.3	3.2	-
FKS74477825	560	0.39	0.3	4670	–	7332	Standard		7.3	7.3	3.2	-
FKS74477826	680	0.31	0.22	5730	–	7332	Standard		7.3	7.3	3.2	-
FKS74477828	820	0.3	0.2	6500	–	7332	Standard		7.3	7.3	3.2	-
FKS74477830	1000	0.28	0.18	9440	–	7332	Standard		7.3	7.3	3.2	-
FKS7447783015	1.5	–	7.8	15	73	7332	Performance	7332 P	7.3	7.4	3.2	SMT
FKS7447783022	2.2	–	6.5	19	62	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783033	3.3	–	5.3	24	51	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783047	4.7	–	4.6	35	38	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783068	6.8	–	3.8	41	35	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783100	10	–	3.1	68	30	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783150	15	–	2.5	85	23	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783220	22	–	2.15	115	18	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783330	33	–	1.75	165	14	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783470	47	–	1.45	210	11.6	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783680	68	–	1.25	300	9.3	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783101	100	–	1	450	7.8	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783151	150	–	0.84	750	6.25	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783221	220	–	0.69	1040	5	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783331	330	–	0.56	1430	4	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783471	470	–	0.47	2040	3.3	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783681	680	–	0.39	2900	2.75	7332	Performance		7.3	7.4	3.2	SMT
FKS7447783102	1000	–	0.32	4600	2.2	7332	Performance		7.3	7.4	3.2	SMT
FKS7447789001	1	7.9	–	12	–	7332	Robust	7332 R	7.3	7.3	3.2	-
FKS7447789002	2.2	5.6	–	23	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789003	3.3	4.9	–	30	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789004	4.7	4.2	–	35	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789006	6.8	3.75	–	44	–	7332	Robust		7.3	7.3	3.2	-
FKS744778910	10	2.9	–	72	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789112	12	2.65	–	98	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789115	15	2.25	–	130	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789118	18	2.1	–	140	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789122	22	2.1	–	190	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789127	27	2	–	210	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789133	33	1.85	–	240	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789139	39	1.6	–	320	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789147	47	1.25	–	360	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789156	56	1.2	–	470	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789168	68	1.05	–	520	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789182	82	1	–	690	–	7332	Robust		7.3	7.3	3.2	-
FKS744778920	100	0.91	–	790	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789212	120	0.93	–	890	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789215	150	0.81	–	1270	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789218	180	0.7	–	1450	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789222	220	0.59	–	1650	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789270	270	0.56	–	2310	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789233	330	0.45	–	2620	–	7332	Robust		7.3	7.3	3.2	-
FKS7447789239	390	0.43	–	2940	–	7332	Robust		7.3	7.3	3.2	-
FKS744778924	470	0.42	–	4180	–	7332	Robust		7.3	7.3	3.2	-
FKS744778925	560	0.39	–	4670	–	7332	Robust		7.3	7.3	3.2	-
FKS744778926	680	0.32	–	5730	–	7332	Robust		7.3	7.3	3.2	-
FKS744778928	820	0.3	–	6540	–	7332	Robust		7.3	7.3	3.2	-
FKS744778930	1000	0.28	–	9440	–	7332	Robust		7.3	7.3	3.2	-
FKS744777001	1	8.6	10.2	10	–	7345	Standard	7345	7.3	7.3	4.5	-
FKS744777002	2.2	6.9	6.5	20	–	7345	Standard		7.3	7.3	4.5	-
FKS744777003	3.3	4.85	4.6	30	–	7345	Standard		7.3	7.3	4.5	-
FKS744777004	4.7	4.9	4	40	–	7345	Standard		7.3	7.3	4.5	-
FKS74477710	10	3.55	2.6	49	–	7345	Standard		7.3	7.3	4.5	-
FKS744777112	12	3.2	2.4	58	–	7345	Standard		7.3	7.3	4.5	-
FKS744777115	15	2.6	2.2	81	–	7345	Standard		7.3	7.3	4.5	-
FKS744777118	18	2.6	2.05	91	–	7345	Standard		7.3	7.3	4.5	-
FKS744777122	22	2.45	1.7	110	–	7345	Standard		7.3	7.3	4.5	-
FKS744777127	27	2.15	1.55	150	–	7345	Standard		7.3	7.3	4.5	-
FKS744777133	33	1.9	1.4	170	–	7345	Standard		7.3	7.3	4.5	-
FKS744777139	39	1.9	1.23	230	–	7345	Standard		7.3	7.3	4.5	-
FKS744777147	47	1.8	1.1	260	–	7345	Standard		7.3	7.3	4.5	-
FKS744777156	56	1.55	1.05	350	–	7345	Standard		7.3	7.3	4.5	-
FKS744777168	68	1.45	0.95	380	–	7345	Standard		7.3	7.3	4.5	-
FKS744777182	82	1.4	0.9	430	–	7345	Standard		7.3	7.3	4.5	-
FKS74477720	100	1.3	0.75	610	–	7345	Standard		7.3	7.3	4.5	-
FKS744777212	120	1.1	0.7	660	–	7345	Standard		7.3	7.3	4.5	-
FKS744777215	150	0.86	0.63	880	–	7345	Standard		7.3	7.3	4.5	-
FKS744777218	180	0.85	0.56	980	–	7345	Standard		7.3	7.3	4.5	-
FKS744777222	220	0.72	0.54	1170	–	7345	Standard		7.3	7.3	4.5	-
FKS744777270	270	0.7	–	1640	–	7345	Standard		7.3	7.3	4.5	-
FKS744777233	330	0.64	0.45	1860	–	7345	Standard		7.3	7.3	4.5	-
FKS744777239	390	0.61	0.42	2850	–	7345	Standard		7.3	7.3	4.5	-
FKS74477724	470	0.54	0.34	3010	–	7345	Standard		7.3	7.3	4.5	-
FKS74477725	560	0.52	0.31	3620	–	7345	Standard		7.3	7.3	4.5	-
FKS74477726	680	0.42	0.28	4630	–	7345	Standard		7.3	7.3	4.5	-
FKS74477728	820	0.39	0.26	5200	–	7345	Standard		7.3	7.3	4.5	-
FKS74477730	1000	0.37	0.25	6000	–	7345	Standard		7.3	7.3	4.5	-
FKS7447779001	1	8	–	15	–	7345	Robust	7345 R	7.3	7.3	4.5	-
FKS74477790015	1.5	6.4	–	18	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779002	2.2	6.2	–	20	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779003	3.3	4.75	–	30	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779004	4.7	4.6	–	32	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779006	6.8	4.25	–	35	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779008	8.2	3.45	–	53	–	7345	Robust		7.3	7.3	4.5	-
FKS744777910	10	3.5	–	49	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779112	12	3.35	–	58	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779115	15	2.8	2.2	81	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779118	18	2.6	–	91	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779122	22	2.45	–	110	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779127	27	2.1	–	150	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779133	33	1.95	–	170	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779139	39	1.9	–	230	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779147	47	1.65	–	260	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779156	56	1.5	–	350	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779168	68	1.45	–	380	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779182	82	1.4	–	430	–	7345	Robust		7.3	7.3	4.5	-
FKS744777920	100	1.3	–	380	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779212	120	1.1	–	660	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779215	150	0.96	–	880	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779218	180	0.9	–	980	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779222	220	0.72	–	1170	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779270	270	0.66	–	1640	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779233	330	0.64	–	1860	–	7345	Robust		7.3	7.3	4.5	-
FKS7447779239	390	0.58	–	2850	–	7345	Robust		7.3	7.3	4.5	-
FKS744777924	470	0.54	–	3010	–	7345	Robust		7.3	7.3	4.5	-
FKS744777925	560	0.52	–	3620	–	7345	Robust		7.3	7.3	4.5	-
FKS744777926	680	0.42	–	4630	–	7345	Robust		7.3	7.3	4.5	-
FKS744777928	820	0.39	–	5200	–	7345	Robust		7.3	7.3	4.5	-
FKS744777930	1000	0.37	–	6000	–	7345	Robust		7.3	7.3	4.5	-
FKS7447773010	1	–	10	12	98	7345	Performance	7345 P	7.3	7.3	4.5	SMT
FKS7447773022	2.2	–	8	17.5	61	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773033	3.3	–	6.6	21	51	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773047	4.7	–	5.5	26	35.5	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773062	6.2	–	4.8	30	31	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773100	10	–	3.8	45	23	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773150	15	–	3.1	69.5	20.7	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773220	22	–	2.5	87	16.1	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773330	33	–	2.1	147	13.5	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773470	47	–	1.7	182	10.3	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773680	68	–	1.45	230	8.4	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773101	100	–	1.2	335	6.7	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773151	150	–	0.95	515	5.2	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773221	220	–	0.81	770	4.3	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773331	330	–	0.66	1085	3.6	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773471	470	–	0.55	1700	2.8	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773681	680	–	0.46	2300	2.3	7345	Performance		7.3	7.3	4.5	SMT
FKS7447773102	1000	–	0.38	3300	1.9	7345	Performance		7.3	7.3	4.5	SMT
FKS7447713015	1.5	–	9.5	16	75	1030	Performance	1030 P	10	10	3	SMT
FKS7447713022	2.2	–	8.5	20	71	1030	Performance		10	10	3	SMT
FKS7447713033	3.3	–	7.2	24	50	1030	Performance		10	10	3	SMT
FKS7447713047	4.7	–	6	31	42	1030	Performance		10	10	3	SMT
FKS7447713082	8.2	–	4.7	49	30	1030	Performance		10	10	3	SMT
FKS7447713100	10	–	4.1	62	25	1030	Performance		10	10	3	SMT
FKS7447713150	15	–	3.4	89	19.5	1030	Performance		10	10	3	SMT
FKS7447713220	22	–	2.7	133	17.5	1030	Performance		10	10	3	SMT
FKS7447713330	33	–	2.2	204	13	1030	Performance		10	10	3	SMT
FKS7447713470	47	–	1.9	248	11.4	1030	Performance		10	10	3	SMT
FKS7447713680	68	–	1.6	330	9.4	1030	Performance		10	10	3	SMT
FKS7447713820	82	–	1.5	419	8.8	1030	Performance		10	10	3	SMT
FKS7447713101	100	–	1.4	478	7.7	1030	Performance		10	10	3	SMT
FKS7447713121	120	–	1.25	598	7	1030	Performance		10	10	3	SMT
FKS7447713151	150	–	1.1	684	6.1	1030	Performance		10	10	3	SMT
FKS7447713331	330	–	0.73	1500	4.3	1030	Performance		10	10	3	SMT
FKS7447713471	470	–	0.65	2200	3.4	1030	Performance		10	10	3	SMT
FKS7447713102	1000	–	0.45	4600	2.3	1030	Performance		10	10	3	SMT
FKS7447714015	1.5	–	12.5	6.6	69	1050	Performance	1050 P	10	10	5	SMT
FKS7447714022	2.2	–	9.5	8	53	1050	Performance		10	10	5	SMT
FKS7447714033	3.3	–	9	10.5	42	1050	Performance		10	10	5	SMT
FKS7447714047	4.7	–	8	12.4	34	1050	Performance		10	10	5	SMT
FKS7447714056	5.6	–	7.2	14.4	28	1050	Performance		10	10	5	SMT
FKS7447714068	6.8	–	5.8	22	23.5	1050	Performance		10	10	5	SMT
FKS7447714100	10	–	5	27	20.5	1050	Performance		10	10	5	SMT
FKS7447714150	15	–	4.1	43	16.8	1050	Performance		10	10	5	SMT
FKS7447714220	22	–	3.6	50	14.5	1050	Performance		10	10	5	SMT
FKS7447714270	27	–	3.4	74	14	1050	Performance		10	10	5	SMT
FKS7447714330	33	–	2.9	79	11.1	1050	Performance		10	10	5	SMT
FKS7447714470	47	–	2.5	99	8.8	1050	Performance		10	10	5	SMT
FKS7447714560	56	–	2.3	121	8.6	1050	Performance		10	10	5	SMT
FKS7447714680	68	–	2.2	132	8	1050	Performance		10	10	5	SMT
FKS7447714820	82	–	1.85	176	6.6	1050	Performance		10	10	5	SMT
FKS7447714101	100	–	1.8	198	5.9	1050	Performance		10	10	5	SMT
FKS7447714151	150	–	1.4	300	4.9	1050	Performance		10	10	5	SMT
FKS7447714221	220	–	1.2	439	4.3	1050	Performance		10	10	5	SMT
FKS7447714331	330	–	1	750	3.15	1050	Performance		10	10	5	SMT
FKS7447714471	470	–	0.82	1100	2.5	1050	Performance		10	10	5	SMT
FKS7447714681	680	–	0.71	1220	2.05	1050	Performance		10	10	5	SMT
FKS7447714102	1000	–	0.55	2050	1.7	1050	Performance		10	10	5	SMT
FKS7447715906	0.6	–	19	5.5	160	1245	Standard	1245	12	12	4.5	-
FKS7447715910	1	–	13.9	7	98	1245	Standard		12	12	4.5	-
FKS7447715001	1.8	–	10.2	9.5	76	1245	Standard		12	12	4.5	-
FKS7447715002	2.5	–	8.5	11	50	1245	Standard		12	12	4.5	-
FKS7447715003	3.3	–	7.1	13	40	1245	Standard		12	12	4.5	-
FKS7447715004	4.7	–	6.3	16	37	1245	Standard		12	12	4.5	-
FKS7447715006	6.8	–	4.7	25	27	1245	Standard		12	12	4.5	-
FKS7447715100	10	–	4.2	30	22	1245	Standard		12	12	4.5	-
FKS7447715120	12	–	3.6	38	19	1245	Standard		12	12	4.5	-
FKS7447715180	18	–	3.2	51	17	1245	Standard		12	12	4.5	-
FKS7447715220	22	–	3.1	65	15.5	1245	Standard		12	12	4.5	-
FKS7447715330	33	–	2.5	85	13	1245	Standard		12	12	4.5	-
FKS7447715470	47	–	2.1	125	9.7	1245	Standard		12	12	4.5	-
FKS7447715101	100	–	1.4	270	6.9	1245	Standard		12	12	4.5	-
FKS7447715221	220	–	1	480	4.7	1245	Standard		12	12	4.5	-
FKS744771010	1	20	15.6	5	88	1260	–	1260	12	12	6	SMT
FKS744771001	1.5	17.5	13.5	6	–	1260	Standard		12	12	6	SMT
FKS744771002	2.2	15.5	11	7	–	1260	Standard		12	12	6	SMT
FKS744771003	3.5	14.5	9.5	8	–	1260	Standard		12	12	6	SMT
FKS744771004	4.7	11.8	8.25	11	–	1260	Standard		12	12	6	SMT
FKS744771006	6.8	9	6.5	18	–	1260	Standard		12	12	6	SMT
FKS744771008	8.2	8.5	6.2	20	–	1260	Standard		12	12	6	SMT
FKS74477110	10	7.7	5.5	24	–	1260	Standard		12	12	6	SMT
FKS744771112	12	7.4	4.9	26	–	1260	Standard		12	12	6	SMT
FKS744771115	15	7	4.5	28	–	1260	Standard		12	12	6	SMT
FKS744771118	18	6.7	4.2	30	–	1260	Standard		12	12	6	SMT
FKS744771122	22	6	3.7	36	–	1260	Standard		12	12	6	SMT
FKS744771127	27	5.3	3.5	45	–	1260	Standard		12	12	6	SMT
FKS744771133	33	4.6	3	57	–	1260	Standard		12	12	6	SMT
FKS744771139	39	4.3	2.7	68	–	1260	Standard		12	12	6	SMT
FKS744771147	47	4.1	2.6	77	9.2	1260	Standard		12	12	6	SMT
FKS744771156	56	3.75	2.3	92	–	1260	Standard		12	12	6	SMT
FKS744771168	68	3.55	2.2	105	–	1260	Standard		12	12	6	SMT
FKS744771182	82	3.05	1.9	135	–	1260	Standard		12	12	6	SMT
FKS74477120	100	2.8	1.7	160	–	1260	Standard		12	12	6	SMT
FKS744771212	120	2.6	1.6	180	–	1260	Standard		12	12	6	SMT
FKS744771215	150	2.3	1.45	220	–	1260	Standard		12	12	6	SMT
FKS744771218	180	2.05	1.25	280	–	1260	Standard		12	12	6	SMT
FKS744771220	220	1.85	1.2	340	–	1260	Standard		12	12	6	SMT
FKS744771270	270	1.7	1	400	–	1260	Standard		12	12	6	SMT
FKS744771233	330	1.5	0.97	490	–	1260	Standard		12	12	6	SMT
FKS744771239	390	1.3	0.85	640	–	1260	Standard		12	12	6	SMT
FKS74477124	470	1.25	0.8	710	–	1260	Standard		12	12	6	SMT
FKS74477125	560	1.12	0.7	890	–	1260	Standard		12	12	6	SMT
FKS74477126	680	1.05	0.68	1020	2.3	1260	Standard		12	12	6	SMT
FKS74477128	820	0.97	0.6	1200	–	1260	Standard		12	12	6	SMT
FKS74477130	1000	0.83	0.55	1600	1.9	1260	Standard		12	12	6	SMT
FKS7447706015	1.5	–	20	7	50.5	1260	Performance	1260 P	12	12	6	SMT
FKS7447706022	2.2	–	16.5	8.5	40.2	1260	Performance		12	12	6	SMT
FKS7447706033	3.3	–	13.5	10	32.2	1260	Performance		12	12	6	SMT
FKS7447706047	4.7	–	11.5	12	27.4	1260	Performance		12	12	6	SMT
FKS7447706062	6.2	–	10	15	22.5	1260	Performance		12	12	6	SMT
FKS7447706100	10	–	7.8	20	17.6	1260	Performance		12	12	6	SMT
FKS7447706150	15	–	6.4	28	13.9	1260	Performance		12	12	6	SMT
FKS7447706220	22	–	5.2	41	11	1260	Performance		12	12	6	SMT
FKS7447706330	33	–	4.2	60	9.2	1260	Performance		12	12	6	SMT
FKS7447706470	47	–	3.6	72	7.5	1260	Performance		12	12	6	SMT
FKS7447706680	68	–	3	97	6.5	1260	Performance		12	12	6	SMT
FKS7447706101	100	–	2.5	140	5.2	1260	Performance		12	12	6	SMT
FKS7447706151	150	–	2	200	4.2	1260	Performance		12	12	6	SMT
FKS7447706221	220	–	1.7	310	3.3	1260	Performance		12	12	6	SMT
FKS7447706331	330	–	1.4	450	2.6	1260	Performance		12	12	6	SMT
FKS7447706471	470	–	1.15	610	2.3	1260	Performance		12	12	6	SMT
FKS7447706681	680	–	0.95	860	1.8	1260	Performance		12	12	6	SMT
FKS7447706102	1000	–	0.8	1250	1.45	1260	Performance		12	12	6	SMT
FKS74477009	0.47	27	–	3	120	1280	Standard	1280	12	12	8	SMT
FKS74477008	0.75	19.5	–	5	110	1280	Standard		12	12	8	SMT
FKS74477001	1.2	16.2	–	7	45	1280	Standard		12	12	8	SMT
FKS744770015	1.5	19	–	5	42	1280	Standard		12	12	8	SMT
FKS74477002	2.4	13.5	–	9	41	1280	Standard		12	12	8	SMT
FKS74477003	3.5	12	–	11	37.5	1280	Standard		12	12	8	SMT
FKS74477004	4.7	11	–	12	31.2	1280	Standard		12	12	8	SMT
FKS74477005	5.6	10	–	13.5	24	1280	Standard		12	12	8	SMT
FKS74477006	6.1	9.5	–	14	25	1280	Standard		12	12	8	SMT
FKS74477007	7.6	9.3	–	15	21.3	1280	Standard		12	12	8	SMT
FKS74477010	10	8.2	–	20	18	1280	Standard		12	12	8	SMT
FKS744770112	12	7.8	–	21	16	1280	Standard		12	12	8	SMT
FKS744770115	15	7.4	–	23	14.5	1280	Standard		12	12	8	SMT
FKS744770118	18	6.3	–	32	13.2	1280	Standard		12	12	8	SMT
FKS744770122	22	5.8	–	35	12	1280	Standard		12	12	8	SMT
FKS744770127	27	5.6	–	38	10	1280	Standard		12	12	8	SMT
FKS744770133	33	4.7	–	53	8.5	1280	Standard		12	12	8	SMT
FKS744770139	39	4.5	–	56	8.2	1280	Standard		12	12	8	SMT
FKS744770147	47	4.25	–	64	7.9	1280	Standard		12	12	8	SMT
FKS744770156	56	4	–	71	7.1	1280	Standard		12	12	8	SMT
FKS744770168	68	3.5	–	90	6.4	1280	Standard		12	12	8	SMT
FKS744770182	82	3.3	–	105	3.5	1280	Standard		12	12	8	SMT
FKS74477020	100	2.85	–	140	5.2	1280	Standard		12	12	8	SMT
FKS744770215	150	2.55	–	175	3	1280	Standard		12	12	8	SMT
FKS744770218	180	2.25	–	220	4.2	1280	Standard		12	12	8	SMT
FKS744770222	220	2	–	275	3.8	1280	Standard		12	12	8	SMT
FKS744770233	330	1.65	–	410	3	1280	Standard		12	12	8	SMT
FKS744770247	470	1.45	–	540	2.6	1280	Standard		12	12	8	SMT
FKS744770256	560	1.25	–	680	2.5	1280	Standard		12	12	8	SMT
FKS744770268	680	1.1	–	930	2.2	1280	Standard		12	12	8	SMT
FKS744770282	820	1.05	–	1050	2	1280	Standard		12	12	8	SMT
FKS74477030	1000	0.98	–	1180	1.8	1280	Standard		12	12	8	SMT
FKS7447707015	1.5	16.5	24	5.5	49.2	1280	Performance	1280 P	12	12	8	SMT
FKS7447707022	2.2	14.8	20.5	6.8	41.7	1280	Performance		12	12	8	SMT
FKS7447707033	3.3	12.8	17.5	9	32.3	1280	Performance		12	12	8	SMT
FKS7447707047	4.7	12	15.5	10	28.8	1280	Performance		12	12	8	SMT
FKS7447707068	6.8	10	13	14	19.1	1280	Performance		12	12	8	SMT
FKS7447707100	10	8	11	21	15.1	1280	Performance		12	12	8	SMT
FKS7447707150	15	7	9	26.5	13.2	1280	Performance		12	12	8	SMT
FKS7447707220	22	6	7.4	36	10.2	1280	Performance		12	12	8	SMT
FKS7447707330	33	4.8	6.1	53	8.3	1280	Performance		12	12	8	SMT
FKS7447707470	47	4.35	5.1	63	7.2	1280	Performance		12	12	8	SMT
FKS7447707680	68	3.6	4.2	90	5.5	1280	Performance		12	12	8	SMT
FKS7447707101	100	3.1	3.5	120	4.3	1280	Performance		12	12	8	SMT
FKS7447707151	150	2.45	2.8	190	3.5	1280	Performance		12	12	8	SMT
FKS7447707221	220	2	2.35	265	2.9	1280	Performance		12	12	8	SMT
FKS7447707331	330	1.6	1.9	410	2.1	1280	Performance		12	12	8	SMT
FKS7447707471	470	1.4	1.6	540	1.9	1280	Performance		12	12	8	SMT
FKS7447707681	680	1.15	1.3	770	1.5	1280	Performance		12	12	8	SMT
FKS7447707102	1000	0.97	–	1090	1.2	1280	Performance		12	12	8	SMT
FKS7447709001	1	18.7	25	6	120	1210	Standard	1210	12	12	10	SMT
FKS7447709002	2.2	16.3	–	6	65	1210	Standard		12	12	10	SMT
FKS7447709003	3.5	14.7	–	9	45	1210	Standard		12	12	10	SMT
FKS7447709004	4.7	13.1	–	11	38	1210	Standard		12	12	10	SMT
FKS7447709006	6.8	11.7	–	14	23	1210	Standard		12	12	10	SMT
FKS7447709100	10	9.5	–	21	21	1210	Standard		12	12	10	SMT
FKS7447709150	15	7.4	–	26	17	1210	Standard		12	12	10	SMT
FKS7447709220	22	7	–	28	10	1210	Standard		12	12	10	SMT
FKS7447709270	27	6.1	–	40	8	1210	Standard		12	12	10	SMT
FKS7447709330	33	5.5	–	45	8.5	1210	Standard		12	12	10	SMT
FKS7447709390	39	5	–	56	6	1210	Standard		12	12	10	SMT
FKS7447709470	47	4.9	–	60	6.5	1210	Standard		12	12	10	SMT
FKS7447709680	68	3.9	–	89	5.5	1210	Standard		12	12	10	SMT
FKS7447709820	82	3.35	–	105	4.5	1210	Standard		12	12	10	SMT
FKS7447709101	100	3.2	–	110	4.3	1210	Standard		12	12	10	SMT
FKS7447709151	150	2.6	–	200	3.5	1210	Standard		12	12	10	SMT
FKS7447709221	220	2.25	–	300	2.7	1210	Standard		12	12	10	SMT
FKS7447709271	270	2	–	330	2.5	1210	Standard		12	12	10	SMT
FKS7447709331	330	1.6	–	430	2	1210	Standard		12	12	10	SMT
FKS7447709471	470	1.45	–	560	1.8	1210	Standard		12	12	10	SMT
FKS7447709681	680	1.2	–	825	1.5	1210	Standard		12	12	10	SMT
FKS7447709821	820	1.05	–	1000	1.2	1210	Standard		12	12	10	SMT
FKS7447709102	1000	1	–	1200	1	1210	Standard		12	12	10	SMT
FKS7447709152	1500	0.71	–	2300	0.9	1210	Standard		12	12	10	SMT
FKS7447709222	2200	0.53	–	3750	0.66	1210	Standard		12	12	10	SMT
FKS7447704150	–	8.8	26	20.5	1510	Standard	–	1510	15	15	10	SMT
FKS7447704220	22	–	7.2	33	11.5	1510	Standard		15	15	10	SMT
FKS7447704471	470	–	1.7	500	1.7	1510	Standard		15	15	10	SMT
