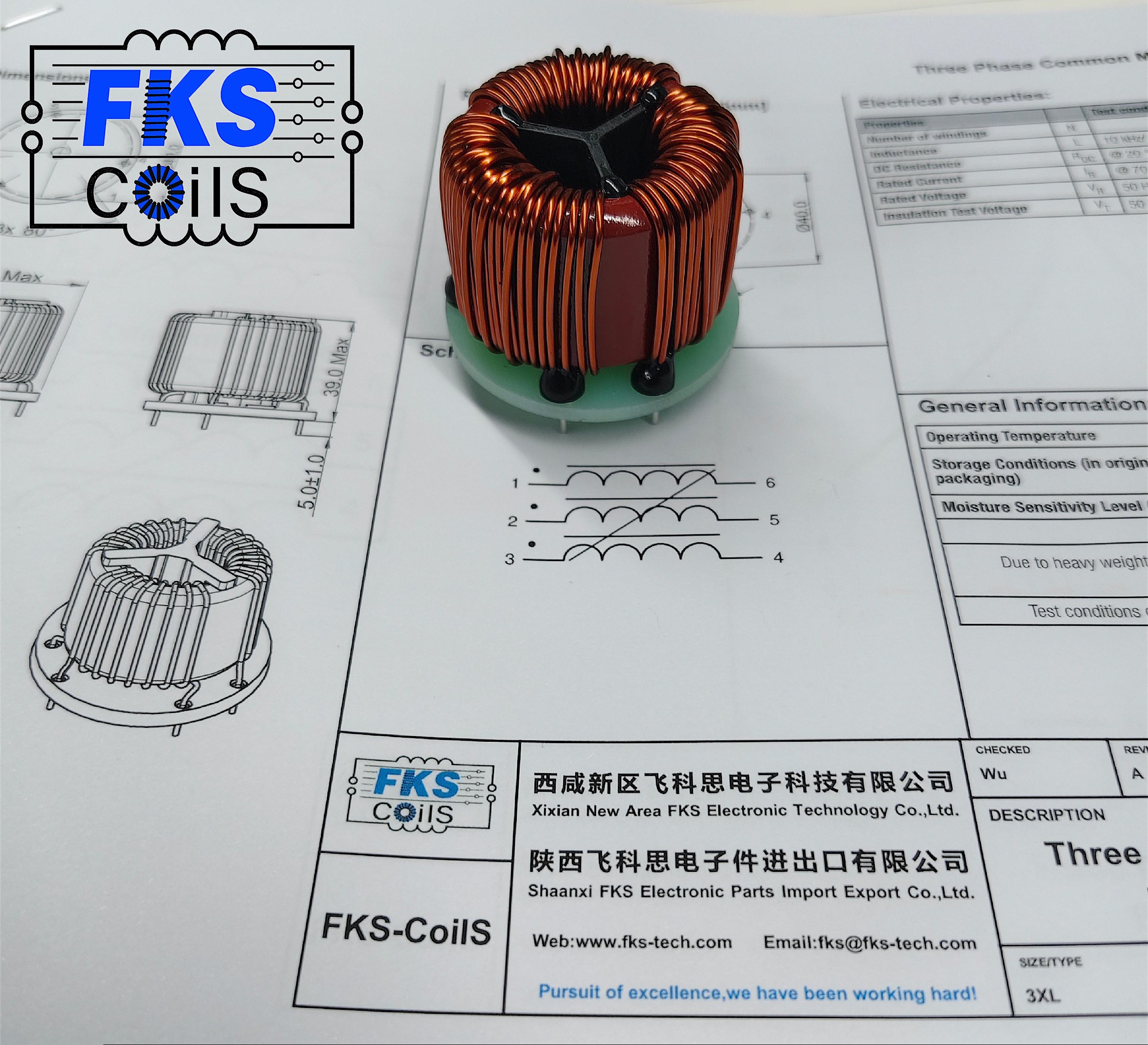

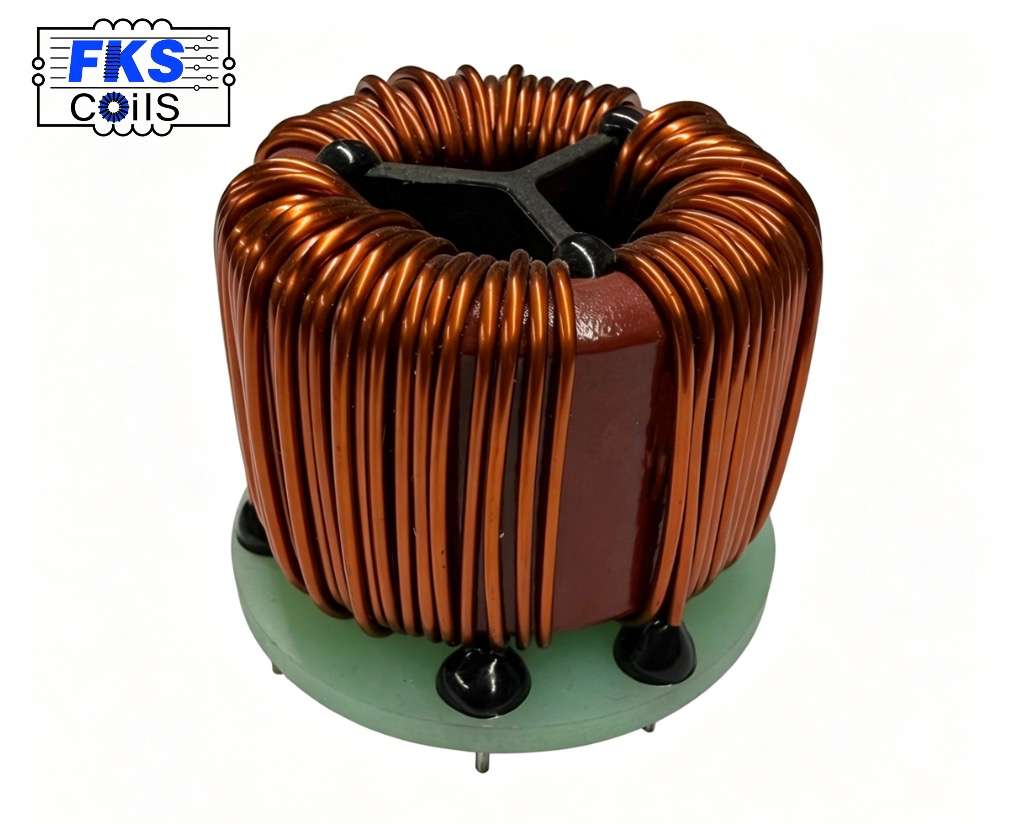

Three Phase Common Mode Power Line Choke FKS744833084075

Product Name:

Three Phase Common Mode Power Line Choke FKS744833084075

Product Description

FKS-CoilS FKS744833084075
Three-Phase Common Mode Power Line Choke
www.fks-coils.com

Characteristics
Application up to 500 VAC
High permeability MnZn Ferrite core material
Insulation through winding spacer
Specification according to EN 60938-2Air and creepage distances ≥ 5 mm
Up to 24 A rated current
Suppression frequency range: 1 kHz to 1 MHz
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications
Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations
